On the tab Building all location that are related to the project or are part of the project are listed. This means that in some cases buildings are listed that do not need any work done.
The buildings are shown in the list, sorted initially on alphabetical order.The order may be changed by the users, by clicking a header and/or sorting.
A building is selected by clicking on a record, in the top part of the screen. The bottom part of the screen shows detailed information on the selected building.
By double clicking on a record the edit screen opens. Here any information on the building in the fields with a white background may be edited.
The gray fields are read-only.
In the bottom half of the screen there are several tabs:
General
The information on the location of the building.
Geography
In the geography of Field Work the location and building contours may be edited.
Editing a building contour
|
The selected building is shown as a white field with a blue border. By clicking the building the edit function is enabled and the contour of the building can be edited.
When you click on the contour of the building a small blue dot will appear.
|
|
By clicking and holding the points may be placed and dragged to the intended location
|
Assume object shape (Snap)
You may use the snap function to assume the contour of a building in the geography. To start the snap function click on the snap button. ().

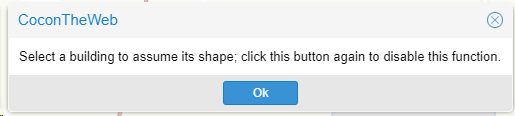

You receive the following notification after doing so.
The buildings in the geography are shown based on the BAG data,
These buildings are clickable, by doing so the contour of the clicked location is used and the object is modified.
You will receive the following notification.
In the geography the contour of the object is now adjusted to the new location. It is still possible to change any contours by hand afterward.
Please note: after changing the contours of the building, use the save button.
Documents to upload
In the screen the records show the mandatory photos that need to be delivered to either the client or the contractor.
In the column 'send to' either the Client or the Contractor is stated as the intended destination for the document.
Both the Client and the Contractor have to accept the delivered documents before the documents are shown in the linked files.
For more information on the documents see objects and actions.
Linked files
Any documents related to the object, be it enclosure or accesspoint are shown here. Documents may be location / enclosure type dependent.
By double clicking the document is downloaded to the device and may be opened with the intended software.
|
|
